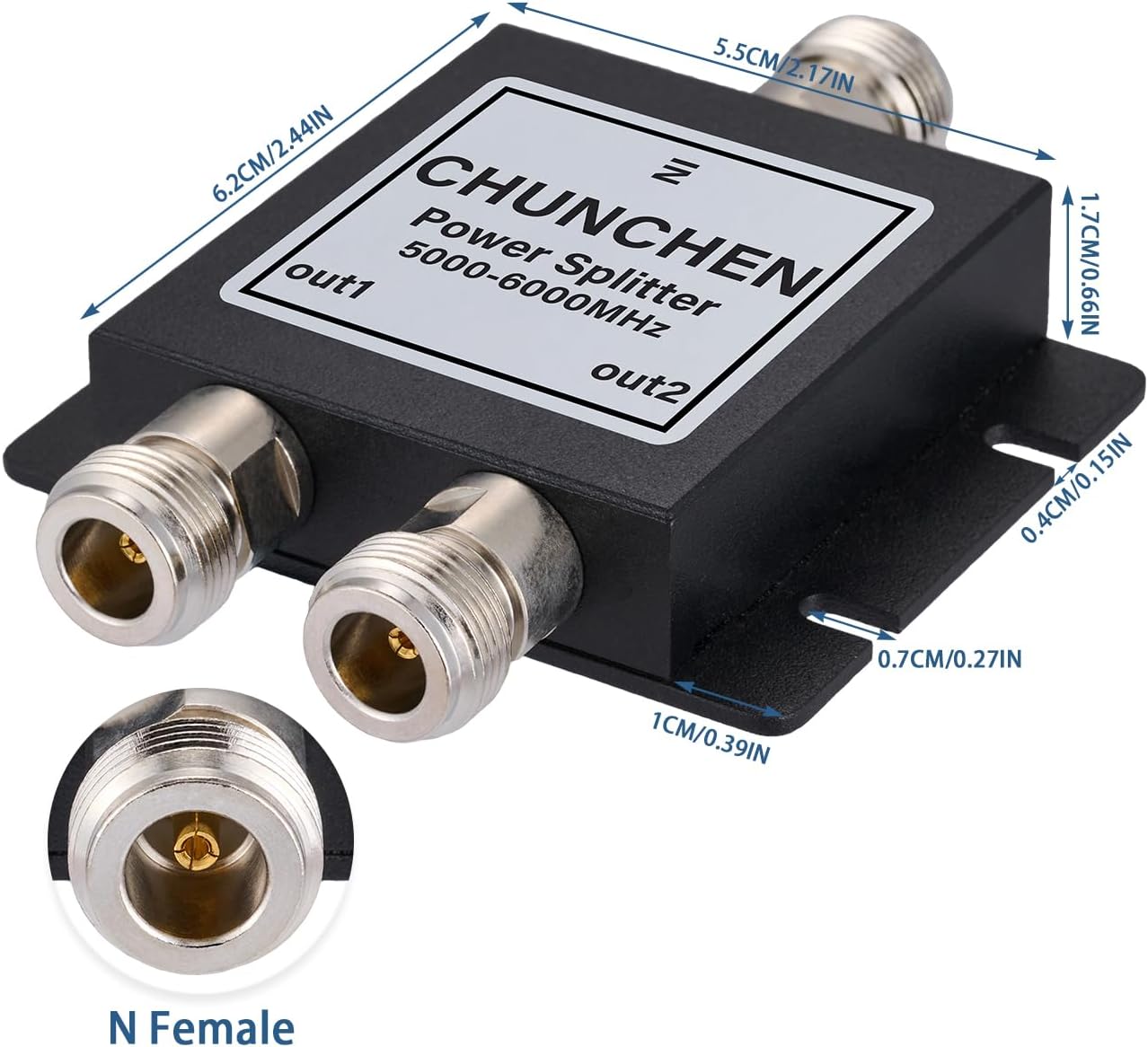

5.8GHz N Female Connector Signal Splitter 2 Way Power Splitter 5000Mhz-6000Mhz Cable Signal Splitter 1 Input 2 Output for Antenna Cable

Product Details：Product name: 5.8GHz N female connector 2 way signal splitter Connector port: 1 input and 2 output Output port type: 2 way Connector type(Input): N female Connector type(Output 1): N femaleConnector type(Output 2): N femaleProduct material(Body): Aluminum alloy Connector material: Copper Frequency range (GHz): 5000-6000Mhz Inputsertion loss (dB): ≤4.8 Isolation (dB): ≤20 VSWR: ≥1.2; ≤1.55 Amplitude balance (dB): ≤0.3 Phase balance (°): ≤5 Impedance (Ω): 50 Power capacity (W): 50 Operating temperature (°C): -30～+70 Product dimensions (cm): 9.8*8*1.5cm Package: 1 x N female 2 way power splitter Weight: 169.3 g

• Product name: 5.8GHz N female 2 way power splitter 1 input 2 out;
• Connector port: 1 input and 2 output; Output port type: 2 way; Connector type(Input): N female; Connector type(Output 1): N female; Connector type(Output 2): N female; Product material(Body): Aluminum alloy; Connector material: Copper;
• Specification: Frequency range (GHz): 5000-6000Mhz; Insertion loss (dB): ≤4.8; Isolation (dB): ≤20; VSWR: ≥1.2, ≤1.55; Amplitude balance (dB): ≤0.3; Phase balance (°): ≤5; Impedance (Ω): 50; Power capacity (W): 50; Operating temperature (°C): -30～+70; Product dimensions (cm): 9.8*8*1.5cm;
• Applicaion: Provides 2 amplified N female output ports for use with cable antenna satellite signal and so on;
• Package: 1 x N female 2 way signal splitter(Weight:169.3g).
